Grafana¶
grafana:
image: grafana/grafana
restart: always
env_file: .grafana.env
#volumes:
# - "/srv/main/grafana/lib:/var/lib/grafana"
# - "/srv/main/grafana/etc:/etc/grafana"
labels:
- "traefik.enable=true"
- "traefik.http.services.srv_grafana.loadbalancer.server.port=3000"
- "traefik.http.routers.r_grafana.rule=Host(`grafana.domain.de`)"
- "traefik.http.routers.r_grafana.entrypoints=websecure"
networks:
- monitoring
- proxy
Unfortunately you need to copy some file out of the container before you can use grafana:
sudo mkdir -p /srv/main/grafana
# start the container without volumes
sudo docker-compose up -d grafana
sudo docker cp main_grafana_1:/var/lib/grafana \
/srv/main/grafana/lib
sudo docker cp main_grafana_1:/etc/grafana \
/srv/main/grafana/etc
# adjust permissions
sudo chown -R 472:472 /srv/main/grafana/
sudo docker-compose rm -fs grafana
Next you can remove the comments in front of the volumes and start up the container.
The default login for grafana is admin:admin.

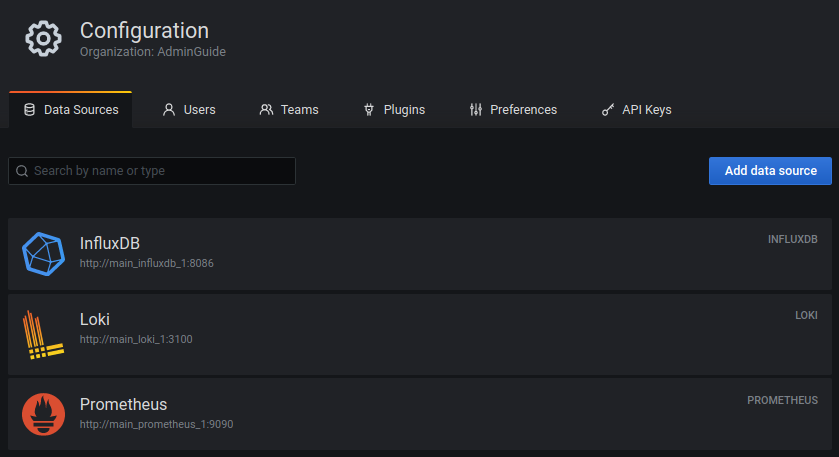

Datasources and Dashboards¶
Finally you can add datasources and create dashboards:
Checkout the officially supported datasources
Plugins¶
You may specify a list of plugins which you would like to install in the .grafana.env:
GF_INSTALL_PLUGINS=grafana-piechart-panel
LDAP Auth¶
You can configure ldap auth in /srv/main/grafana/etc/grafana.ini and /srv/main/grafana/etc/ldap.toml:
#################################### Auth LDAP ##########################
[auth.ldap]
enabled = true
;config_file = /etc/grafana/ldap.toml
;allow_sign_up = true
[log]
filters = "ldap:debug"
[[servers]]
host = "ldap"
port = 389
use_ssl = false
start_tls = false
ssl_skip_verify = false
bind_dn = "cn=admin,dc=domain,dc=de"
bind_password = 'S3cr3T'
search_filter = "(&(objectclass=person)(&(memberof=cn=grafana,ou=groups,dc=domain,dc=de))(uid=%s))"
search_base_dns = ["dc=domain,dc=de"]
[servers.attributes]
name = "givenName"
surname = "sn"
username = "cn"
member_of = "memberOf"
email = "email"
[[servers.group_mappings]]
group_dn = "cn=admin,cn=grafana,ou=groups,dc=domain,dc=de"
org_role = "Admin"
[[servers.group_mappings]]
group_dn = "cn=editor,cn=grafana,ou=groups,dc=domain,dc=de"
org_role = "Editor"
[[servers.group_mappings]]
group_dn = "*"
org_role = "Viewer"
All members of cn=grafana,ou=groups,dc=domain,dc=de get the Viewer role, members that are also in cn=editor,cn=grafana,ou=groups,dc=domain,dc=de get the Editor role...
OpenID/KeyCloak¶
Checkout janikvonrotz.ch/2020/08/27/grafana-oauth-with-keycloak-and-how-to-validate-a-jwt-token
